Mini
>>
2017
>>
Cooper Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Exterior/Interior Trim
>>
Body Equipment - Repair (F57)
>>
51 13 Trim Parts, Covers, Handle Strip
>>
Removing and installing/replacing ornamental grille surround at the bottom (Cooper Convertible)
>>
REP-TAT-P-5113-01 Removing the lower ornamental grille surround
REP-TAT-P-5113-01 Removing the lower ornamental grille surround
Preliminary work
Remove front
BUMPER COVER
Remove the upper
ORNAMENTAL GRILLE SURROUND

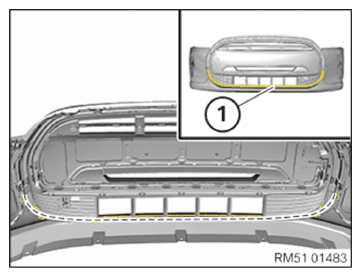

Detach the lower ornamental grille surround (1) from all detents along the dashed line and remove it.
Courtesy of BMW OF NORTH AMERICA, INC.
