Removing and installing/replacing cover on left or right tail light (Cooper Convertible)

Special tools required:

• 00 9 323

Removal:

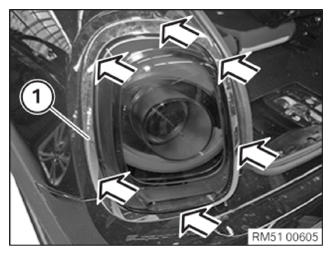

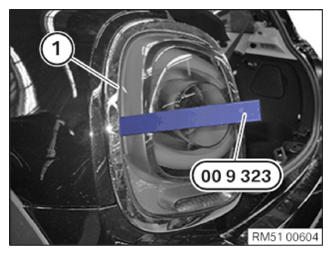

Unclip trim (1) with special tool 00 9 323.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

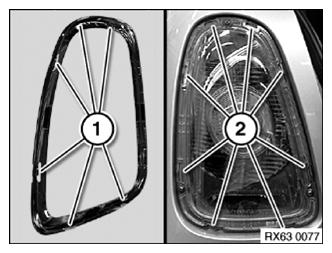

Detents (1 and 2) must not be damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
