REP-TAT-P-5113-02 Installing trim on radiator grille

Follow-up work

• Install front BUMPER COVER

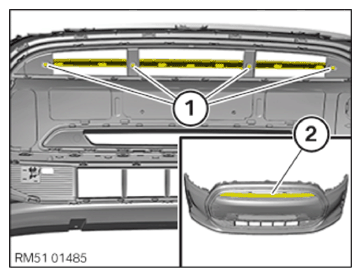

• Position the trim (2) correctly
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Cover to front radiator grill
  Screw
  	Tightening torque
  	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
