51 12 Bumper, Rear
>>
Replacing bumper footwell trim at rear (Cooper Convertible)
>>
REP-TAT-P-6324-02 Installing the rear fog light
REP-TAT-P-6324-02 Installing the rear fog light

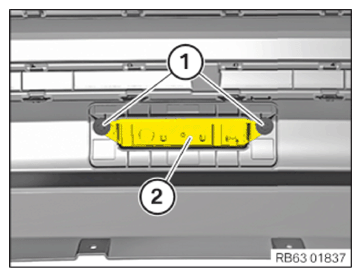

Position rear fog light (2) in the bumper.
Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
Rear fog light to bumper cover
Screw
Tightening torque
1.5 Nm
