REP-TAT-P-5112-01 Remove rear bumper panel

Courtesy of BMW OF NORTH AMERICA, INC.

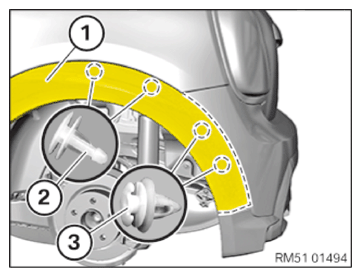

• Detach wheel arch trim (1) from the detents along the dashed line.
• Detach the wheel arch trim (1) at the clips (2) and (3).
• Loosen screws (1) left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

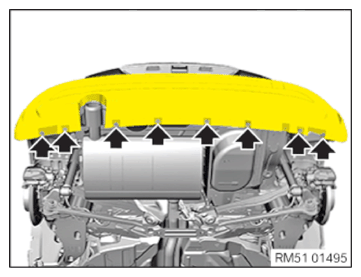

• Release all bolts (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

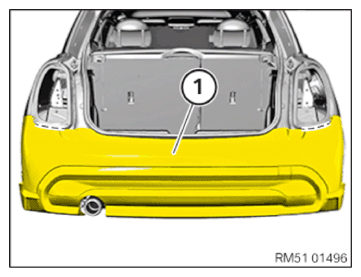

• Release the bumper cover (1) from the detents in dashed line area.
• Remove the bumper cover (1) with the help of a support person.

Unlock and disconnect the plug connections for the rear fog lights and/or ultrasonic sensors.
