REP-TAT-P-5112-02 Installing the trim on the bumper panel

Follow-up work

• Install the rear BUMPER COVER
• Install the left and right TAIL LIGHTS

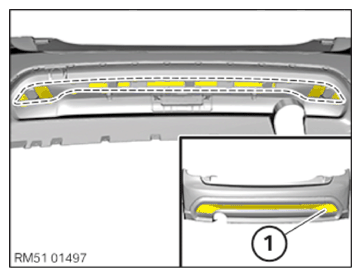

• Check trim (1) for damage and, if necessary, replace it.
• Engage trim (1) into all the detents along the dotted line.

  Courtesy of BMW OF NORTH AMERICA, INC.
