REP-TAT-P-5111-02 Installing trim on radiator grille

Follow-up work

• Install front BUMPER COVER
• Install the center trim
• Install left and right air duct trim
• Install the upper ornamental grille surround
• Install trim on radiator grille
• Install the left and right trim
• Install the center trim at the bottom

Courtesy of BMW OF NORTH AMERICA, INC.

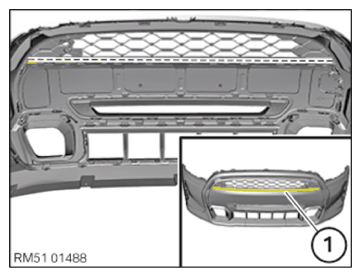

• Check all detents of the trim (1)  .

If there are faulty detents, replace the trim (1)  .

• Position the trim (1) correctly and engage it at all detents along the dashed line.
