REP-TAT-P-5111-02 Installing left and right air duct trim
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing air duct trim
 Courtesy of BMW OF NORTH AMERICA, INC.
|

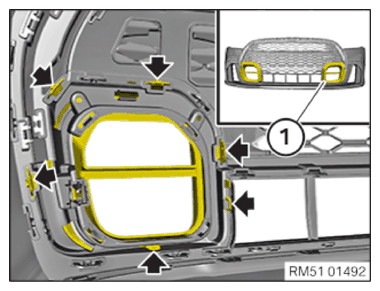

- Check all detents of the trim (1)
.
If there are faulty detents, replace the trim (1)
.
- Position the trim (1)
correctly and engage at the detents (arrows).
