REP-TAT-P-5111-02 Installing left and right air duct trim
NOTE:
Description is for left component only. Procedure on the right side is identical.

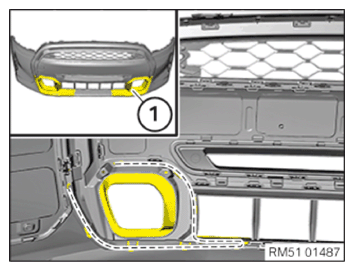

Installing air duct trim
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Check all detents of the trim (1).
If there are faulty detents, replace the trim (1).
- Position the trim (1) correctly and engage it at all detents along the dashed line.
