Removing and installing/replacing the ornamental grille in the bumper cover (Cooper Convertible)
Preliminary work needed:
- Remove front BUMPER COVER .
Removal:

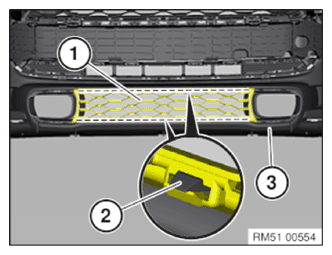

Release ornamental grille (1) from detents (2) and remove.
Installation:
NOTE:
Detents (2) on ornamental grille (1) and bumper cover (3) must not be damaged.
Position and clip in the ornamental grille (1) on the detents (2).
Required follow-up work:
- Install front BUMPER COVER .
