REP-TAT-P-6761-02 Installing the convertible top drive unit

Install the convertible top drive unit

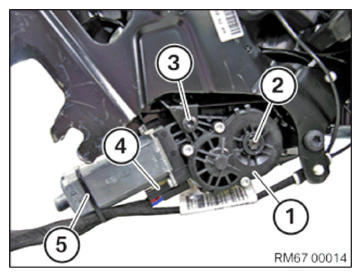

• Place the convertible top drive unit (1) on the shaft (2) and swing upwards.
• Tighten down screw (3).

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connector (4).
• Fit cable tie (5).

Required follow-up work

Install CONVERTIBLE TOP
