61 33 060 Removing and installing/replacing both fanfare horn horns

Preliminary work needed:

• Remove front bumper cover

Removal:

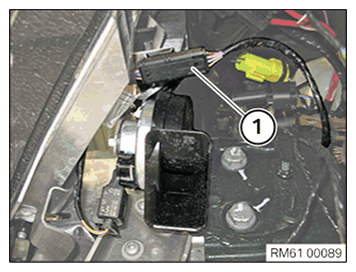

Unlock and disconnect connector (1) on cable clip.

Courtesy of BMW OF NORTH AMERICA, INC.

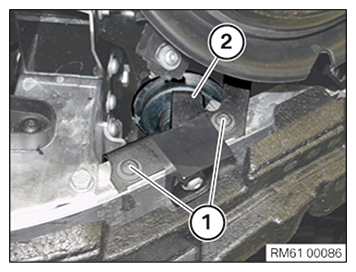

Release screws (1) and feed out holder with fanfare horns (2) downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in holder with fanfare horns (2) from below and tighten with screws (1).

Tightening torque 61 33 1AZ.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (1) to cable clip.

Courtesy of BMW OF NORTH AMERICA, INC.
