61 33 040 Removing and installing/replacing a fanfare horn

Preliminary work needed:

• Remove front bumper cover

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

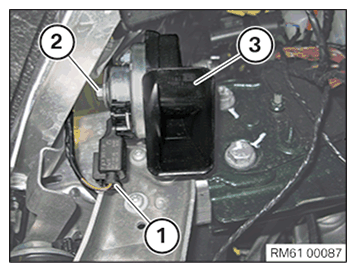

Fanfare horn on top holder:

Unlock and disconnect the connector (1).

Release nut (2) and feed out fanfare horn (3).

Courtesy of BMW OF NORTH AMERICA, INC.

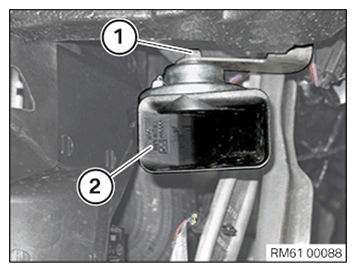

Fanfare horn on bottom holder:

Release nut (1) and feed out fanfare horn (2).

Unlock and disconnect associated connector.

Installation:

Fanfare horn on top holder:

Join fanfare horn (3) and tighten with nut (2).

Tightening torque 61 33 2AZ.

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Fanfare horn on bottom holder:

Connect associated connector.

Join fanfare horn (2) and tighten with nut (1).

Tightening torque 61 33 2AZ.
