51 13 124 Removing and installing/replacing right cowl panel cover

Necessary preliminary work:

Remove seal (1) in the area of cover (2).

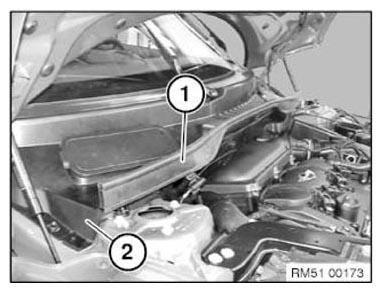

Fig 1: Identifying Right Cowl Panel Cover And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Release cover (3) upwards from guide (2) and feed out towards front.

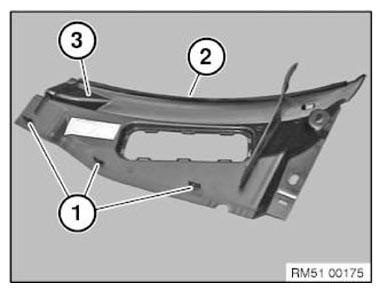

Fig 2: Identifying Cover, Guide And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Ensure cover (3) is correctly seated.

Guides (1) and seal (2) must not be damaged.

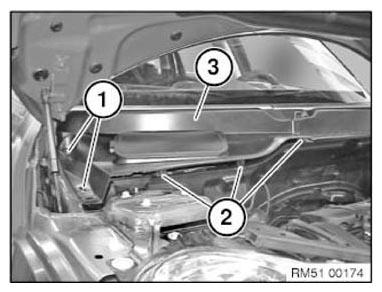

Fig 3: Identifying Right Cowl Panel Cover, Guides And Seal

Courtesy of BMW OF NORTH AMERICA, INC.
