51 71 040 Removing and installing/replacing front left or right wheel arch cover

Necessary preliminary tasks:

Replace expanding rivets (1).

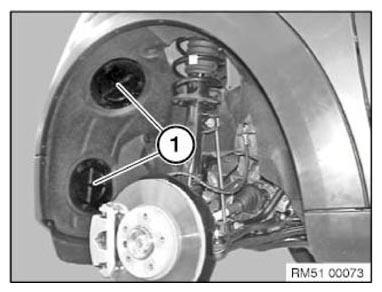

Fig 1: Identifying Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Release expanding rivets (1).

Release screw rivets (1).

Release expanding rivet (3).

Release screws (2 and 4).

Remove wheel arch cover (5).

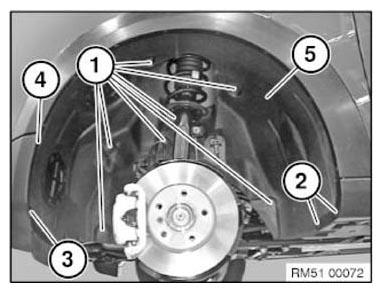

Fig 2: Identifying Wheel Arch Cover, Expanding Rivets And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, modify lid (1)

Fig 3: Identifying Lid

Courtesy of BMW OF NORTH AMERICA, INC.
