52 26 000 Removing and installing/replacing left or right rear seat

Necessary preliminary tasks:

Release screws (1).

Installation note:

Tightening torque 52 26 10AZ .

Remove trim panel (2).

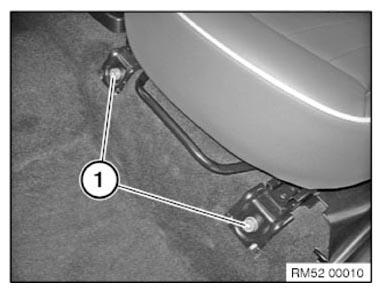

Fig 1: Identifying Trim Panel And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt backrest forwards.

Release screws (1).

Installation note:

Tightening torque 52 26 09AZ .

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off cover (1) on left and right forwards.

Fig 3: Pulling Out Cover From Left And Right Side

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) must not be damaged.

If necessary, replace faulty trim.

Fig 4: Identifying Trim Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Installation note:

Clean the screws and apply Loctite to screws.

Tightening torque 52 26 07AZ .

Fig 5: Identifying Rear Seat Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Cover entrance for protection purposes (risk of damage).
Lift out rear seat.
