61 61 270 Removing and installing/replacing console for windscreen wiper system complete with motor

Necessary preliminary tasks:

• Remove LEFT COWL PANEL COVER

Release screws (1).

Tightening torque 61 61 2AZ .

Carefully raise wiper bracket (2), release and disconnect plug connection behind it.

Remove wiper bracket (2).

Installation note:

Make sure the wiper bracket (2) fits correctly.

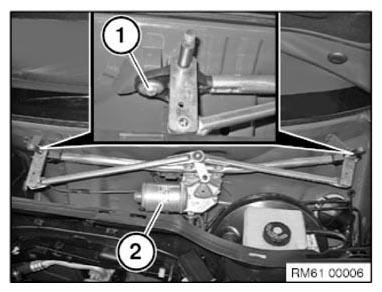

Fig 1: Identifying Wiper Bracket Screws

Courtesy of BMW OF NORTH AMERICA, INC.
