63 31 150 Removing and installing/replacing glovebox light

Open glovebox.

Pry out glove box light (1) in direction of arrow.

Disconnect plug connection and remove glove box light (1).

Replacement:

• If necessary, convert BULB
• Note BULB TYPE .

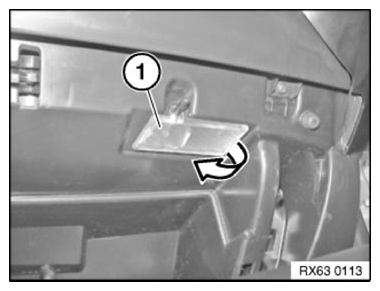

Fig 1: Removing Glove Box Light

Courtesy of BMW OF NORTH AMERICA, INC.
