65 13 050 Removing and installing/replacing speaker (tweeter in mirror triangle)

Necessary preliminary tasks:

• Remove FRONT DOOR TRIM PANEL

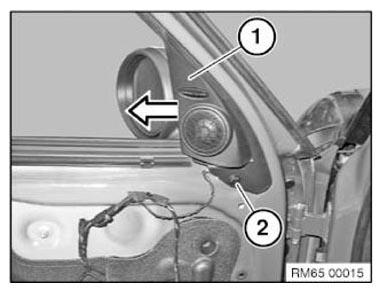

Lift out expanding rivet (2).

Remove tweeter cover (2) in direction of arrow.

Fig 1: Removing Tweeter Cover

Courtesy of BMW OF NORTH AMERICA, INC.

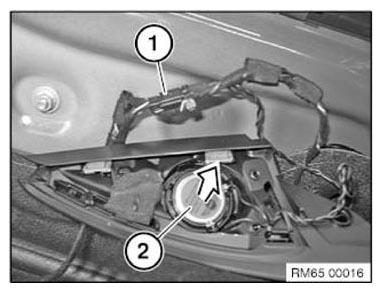

Release cable strap and disconnect plug connection (1).

Remove tweeter (2) in direction of arrow.

Fig 2: Removing Tweeter

Courtesy of BMW OF NORTH AMERICA, INC.
