51 13 015 Removing and installing/replacing trim ring for left or right headlight

Release clip (1) in direction of arrow.

Remove trim ring.

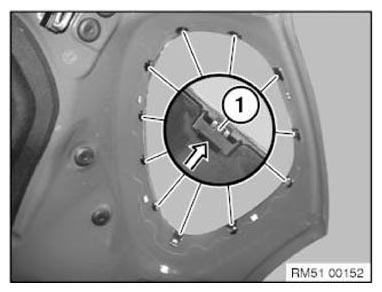

Fig 1: Releasing Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The clip (1), guide (2) and centering (3) must not be damaged.

Replace faulty clips.

Mount trim ring with pre-installed clips (1) on engine compartment lid.

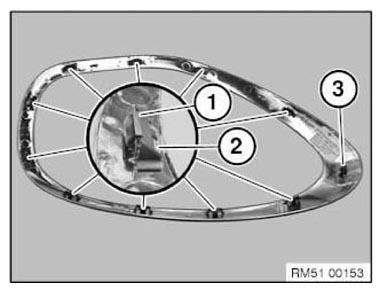

Fig 2: Identifying Right Headlight Centering, Clip, And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
