346300 Tool

Minimum set: Mechanical tools AM

NOTE: Brake piston tool) For turning back brake piston when fitting new brake pads, disc brakes front and rear

Storage Location: A82

SI number: 01 05 01 (718)

Consisting of:

1 = 0494004 Pin wrench

NOTE: For turning brake piston. Brakes: Teves

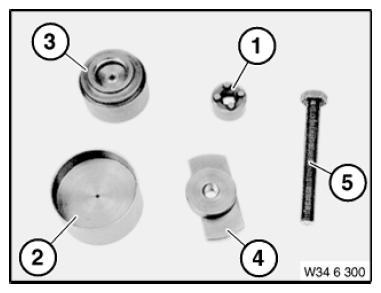

Fig 1: Identifying Tool (346300)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0494005 Holding sleeve

NOTE: Pressure sleeve) for mounting the rubber cup (diameter 63) discontinued, available as part of set of special tools only

3 = 0494006 Holding sleeve

NOTE: Pressure sleeve) For fitting rubber cup (diameter 54)

4 = 0494007 Synchronizing key

NOTE: Synchronizing key) For pressing back the piston

5 = 0494008 Screw

NOTE: Screw) For pressing back the piston

6 = 0494220 Nut

7 = 0494221 Plate

8 = 0494222 Spindle

NOTE: Spindle (M18 x 2.5)

9 = 0495596 Pin wrench

NOTE: For turning the brake piston on the R56. Brakes: TRW
