34 21... Overview of rear brakes

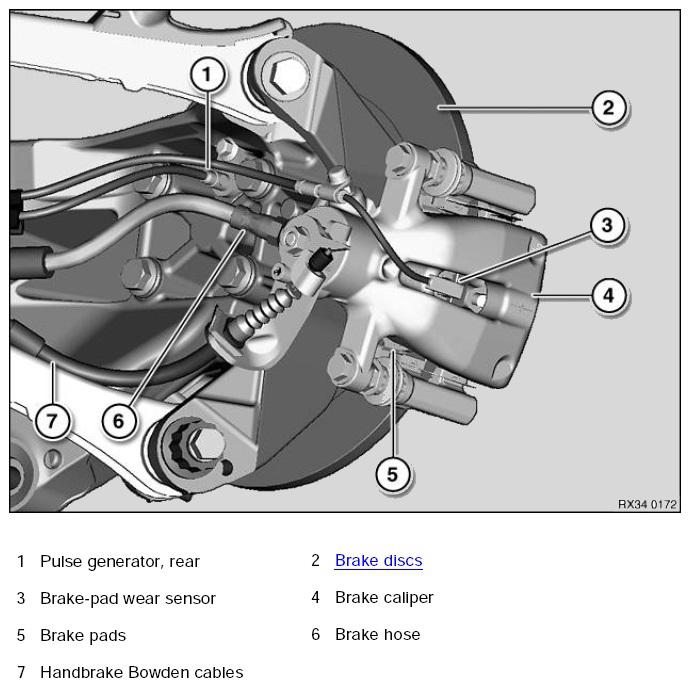

Fig 1: Overview Of Rear Brakes

G11007807

Courtesy of BMW OF NORTH AMERICA, INC.
