84 10 800 Removing and installing/replacing Combobox

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

NOTE: Comply with notes on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

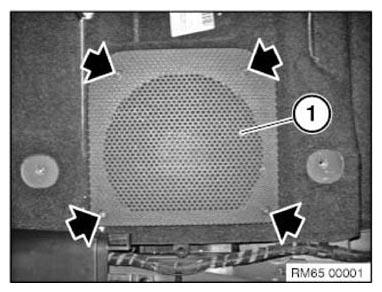

Release screws.

Remove trim (1) upwards.

Fig 1: Locating Trim Screws

Courtesy of BMW OF NORTH AMERICA, INC.

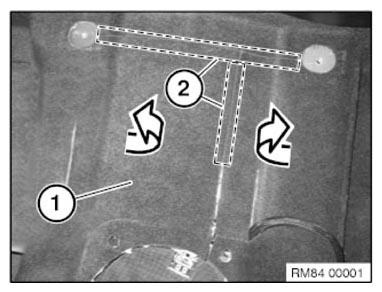

Cut carpet (1) to size in area (2) and raise up in direction of arrow.

Fig 2: Raising Up Cutting Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The holes must be opposite from each other.

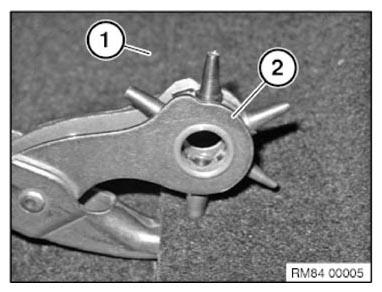

Punch the carpet (1) with hole punch pliers (2).

Fig 3: Punching Carpet With Hole Punch Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

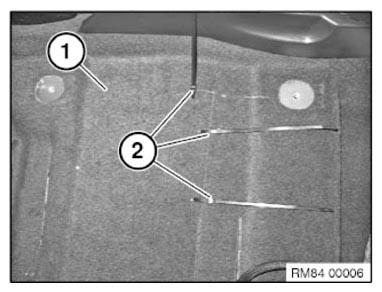

Fasten the carpet (1) with cable straps (2).

Fig 4: Fastening Carpet With Cable Straps

Courtesy of BMW OF NORTH AMERICA, INC.

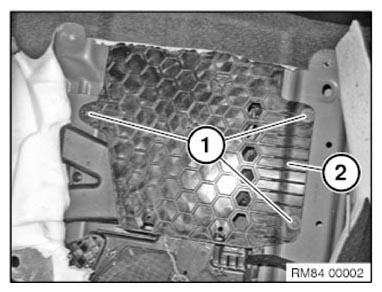

Release screws (1).

Remove the holder for the Combox (2) upwards. Unlock plug connections behind and disconnect.

Installation note:

Observe color coding of aerial connectors.

Make sure the holder for the Combox (2) is correctly seated.

Fig 5: Identifying Hub And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

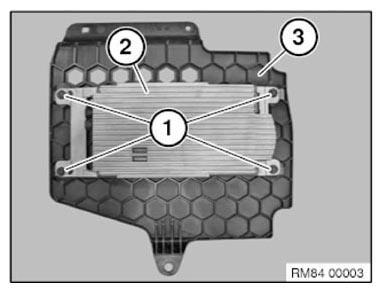

Release screws (1).

Remove the Combox (2) from the holder (3).

Installation note:

Make sure the Combox (2) is correctly seated.

Fig 6: Identifying Combox, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

For vehicles with Teleservices optional equipment:
