64 22 230 Removing and installing (replacing) center left fresh air grille

Necessary preliminary tasks:

REMOVAL:

Release screw (1).

Pull off fresh air grille (2) forwards.

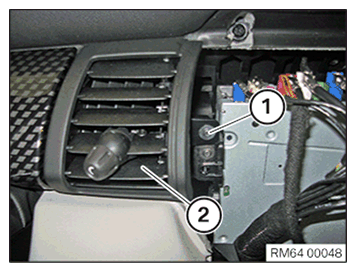

Fig 1: Fresh Air Grille And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

NOTE: Clamps (1) must not be damaged or missing.

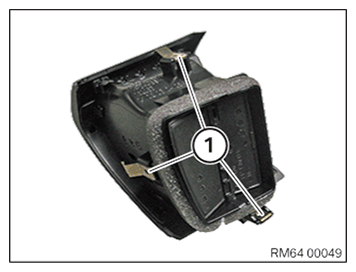

Fig 2: Locating Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Engage fresh air grille (2) in instrument panel.

Tighten screw (1).

Fig 3: Fresh Air Grille And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
