41 63 000 Removing and installing flap for fuel filler neck

Removal:

MINI ONE and MINI COOPER versions:

Open fuel filler flap.

Use a suitable tool to lift the latch mechanism out toward the front in direction of arrow.

Detach fuel filler flap (1) in direction of arrow.

Fig 1: Detaching Fuel Filler Flap

Courtesy of BMW OF NORTH AMERICA, INC.

MINI COOPER S:

Open flap for fuel filler neck.

Lift out lock (1), turn flap for fuel filler neck (2) in the direction of the arrow and remove.

Fig 2: Turning Fuel Filler Neck Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

MINI ONE and MINI COOPER versions:

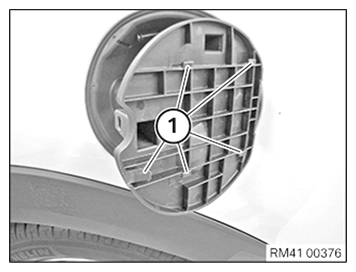

The latch mechanisms (1) must not be damaged.

If the latch mechanism is damaged, the COVER POT must be replaced.

Fig 3: Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Open hinge arm.

Place the fuel filler flap (1) on the hinge arm and push on in the direction of arrow until the locking mechanism engages.

Fig 4: Engaging Locking Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

MINI Cooper S:

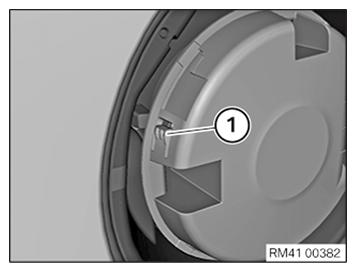

The latch mechanism (1) must not be damaged.

If the latch mechanism is damaged, replace the cover pot.

Fig 5: Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Open hinge arm.

Place the fuel filler flap (1) on the hinge arm and turn in the direction of arrow until the locking mechanism engages.

Fig 6: Turning Fuel Filler Flap On Hinge Arm
