51 31 045 Removing and installing/replacing trim for left or right A-pillar

Necessary preliminary work:

Removal:

Unclip roof trim strip (1) outwards in front area.

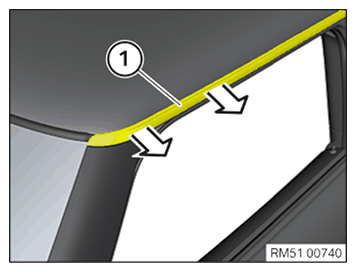

Fig 1: Removing Roof Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Release door seal in area of A-pillar.

Release screws (1).

Release cover (2) at clips (3) and remove.

Fig 2: Cover, Clips And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: If necessary, release clips (2) from A-pillar (1).

Seal (3) must not be damaged.

Fig 3: A-Pillar, Clips And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Replace faulty grommets (1) on A-pillar (2).

Fig 4: A-Pillar And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Parts: Replace faulty clips (1 and 2).

Make sure the installation location of clips (1 and 2) is correct.

Clip mount (3) remains free.

Fig 5: A-Pillar Clips With Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Position trim (2) with clips (3) on body and clip in.

Tighten down screws (1).

Fasten door seal in area of A-pillar.

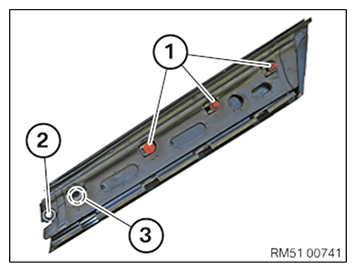

Fig 6: Cover, Clips And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Clip roof trim strip (1) into clamps (2).

Clip roof trim strip (1) into trim (3) in area (A).

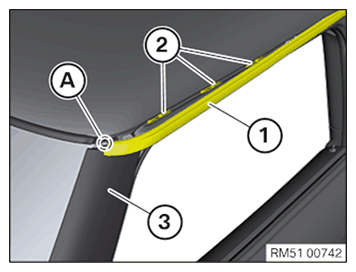

Fig 7: Trim, Roof Trim Strip And Clamps
