51 16 206 Removing and installing/replacing center armrest

Removal:

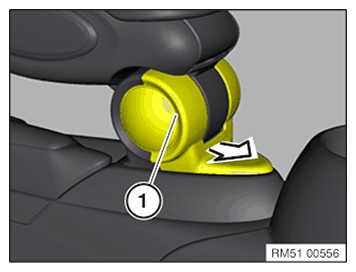

Detach cover (1).

Fig 1: Detaching Cover

Courtesy of BMW OF NORTH AMERICA, INC.

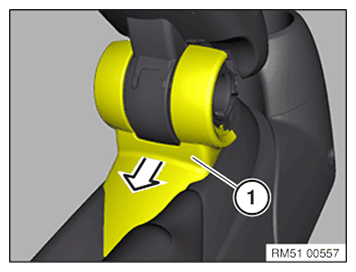

Detach cover (1).

Fig 2: Detaching Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Bluetooth mobile phone preparation:

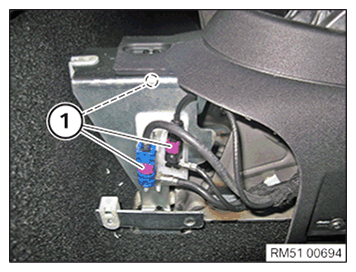

Unlock plug connection (1) on left and right and disconnect.

Fig 3: Rear Cup Holder Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

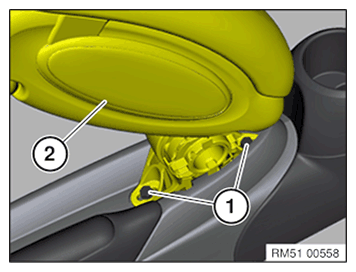

Release screws (1).

Remove center armrest (2) upwards.

Fig 4: Center Armrest And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement (depending on equipment):

Installation:

Position center armrest (2).

Connect associated plug connections depending on equipment.

Tighten down screws (1).

Tightening torque 51 16 4AZ .

Fig 5: Center Armrest And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Bluetooth mobile phone preparation:

Connect plug connections (1) on left and right.

Fig 6: Rear Cup Holder Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

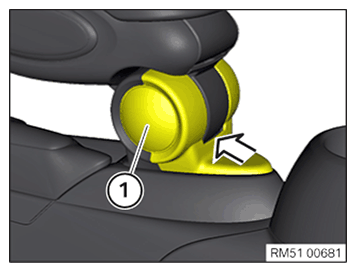

Engage cover (1).

Fig 7: Engaging Cover

Courtesy of BMW OF NORTH AMERICA, INC.

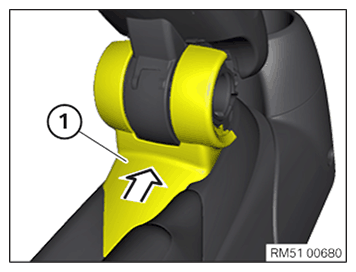

Engage cover (1).

Fig 8: Engaging Cover

Courtesy of BMW OF NORTH AMERICA, INC.
