51 13 425 Removing and installing/replacing cover on left or right rear light

Special tools required:

• 00 9 323

Removal:

Unclip trim (1) with special tool 00 9 323 .

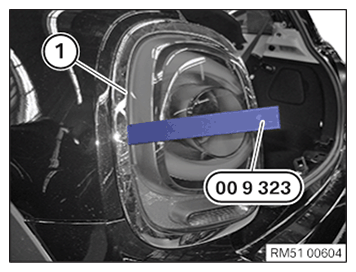

Fig 1: Removing Trim With Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Latch mechanisms (1 and 2) must not be damaged.

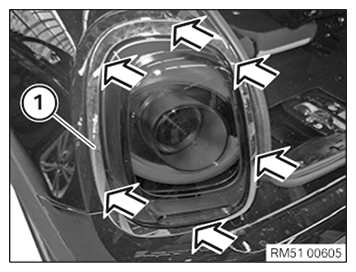

Fig 2: Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in cover (1).

Fig 3: Installing Cover

Courtesy of BMW OF NORTH AMERICA, INC.
