51 13 105 Removing and installing/replacing trim on rear left or right wheel arch

Removal:

Release trim (1) on the clips (2, 3).

Release trim (1) in the area of the bumper from the latch mechanisms.

If necessary, unlock associated plug connection and disconnect.

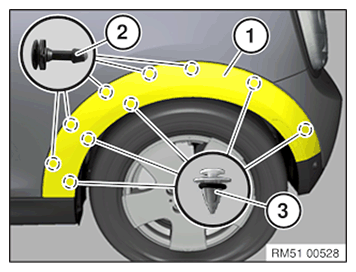

Fig 1: Trim And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

If replacing with USA national version:

Installation:

NOTE: Check grommets (1) for damage and replace if required.

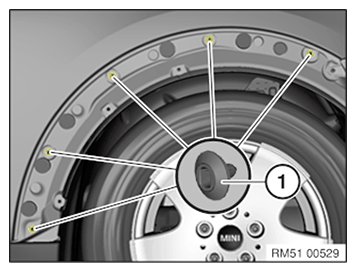

Fig 2: Checking Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Renew faulty clips (2, 3).

If necessary, connect plug connection.

Attach trim (1) and engage at clips (2, 3).

Engage trim (1) in the area of the bumper in the latch mechanisms.

Fig 3: Trim And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
