51 13 102 Removing and installing/replacing trim on front left or right wheel arch

Necessary preliminary tasks:

• Release TRIM PANEL  for entrance in the front area.

Removal:

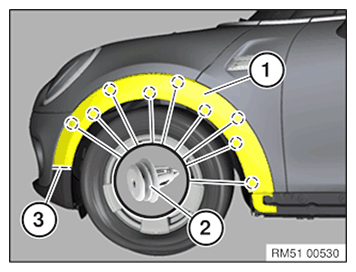

Release trim (1) on clips (2) and latch mechanisms in the area (3).

If necessary, disconnect associated plug connection and remove cover (1).

If replacing with USA national version:

Remount SIDE MARKER LIGHT .

Installation:

Connect plug connections.

Clip in trim (1) on clips (2) and latch mechanisms (3).
