51 12 090 Removing and installing/replacing side ornamental grille in bumper panel (Cooper JCW)

Special tools required:

Removal:

Use special tool 2 298 505 to loosen ornamental grille (1) from latch mechanisms (2) from outside and remove.

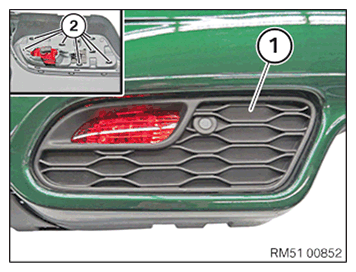

Fig 1: Ornamental Grille And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 2 298 505 to loosen ornamental grille (1) from latch mechanisms (2) from outside and remove.

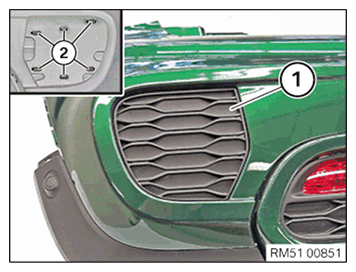

Fig 2: Ornamental Grille And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Latch mechanisms (2) must not be damaged or missing.

Engage ornamental grille (1) from outside in the latch mechanisms (2).

Fig 3: Ornamental Grille And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Latch mechanisms (2) must not be damaged or missing.

Engage ornamental grille (1) from outside in the latch mechanisms (2).

Fig 4: Ornamental Grille And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
