51 12 070 Replacing the center spoiler on rear bumper panel

Necessary preliminary tasks:

• Remove BUMPER PANEL

Removal:

Release catches (1) and remove spoiler (2).

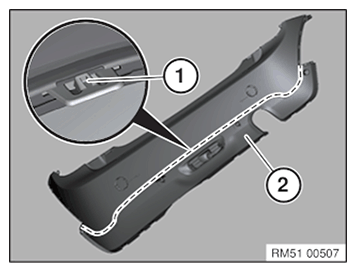

Fig 1: Catches And Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing, swap over the following parts:

• REAR FOG LIGHT
• Vehicles with Park Distance Control (PDC): ULTRASONIC SENSORS

Installation:

Position spoiler (2) and engage latch mechanisms (1).

Fig 2: Catches And Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.
