51 11 180 Removing and installing/replacing ornamental grille in bumper panel (Cooper and Cooper S)

Necessary preliminary tasks:

Removal:

Release ornamental grille (1) from latch mechanisms (2) and remove.

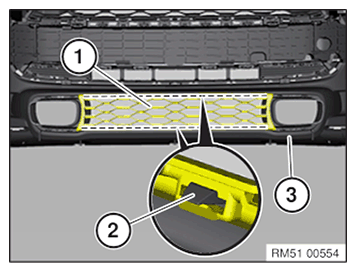

Fig 1: Ornamental Grille Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Latch mechanisms (2) on ornamental grille (1) and bumper panel (3) must not be damaged.

Position and clip in the ornamental grille (1) on the latch mechanisms (2).

Fig 2: Ornamental Grille Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
