63 17 070 Removing and installing/replacing left fog light

Necessary preliminary tasks:

Removal:

Unlock and disconnect the connector (1).

Release screws.

Feed out fog lights (2) toward side.

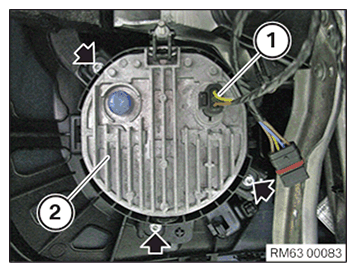

Fig 1: Fog Lights And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in fog light (2) and tighten at screws.

Tightening torque: 4 Nm.

Connect the plug (1).

Fig 2: Fog Lights And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

If replacing fog light or front bumper panel:

If necessary, remount bulb(s).
