67 11 555 Removing and installing/replacing servodrive for fuel filler flap

Necessary preliminary tasks:

Remove COVER HOUSING

Removal:

Unlock retaining lugs (2) with a suitable tool.

Remove actuator drive (1) from cover pot (3).

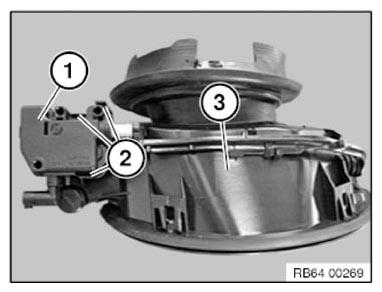

Fig 1: Locating Actuator Drive Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Release the actuator drive (2) by simultaneously turning and pressing the locking pin (1).

Fig 2: Locating Actuator Drive Locking Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Engage actuator drive (2) at locking pin (1).

NOTE: Make sure the setting for the controller drive (2) for the fuel filler cap is correct. It must be possible to lock or unlock the fuel filler cap completely.

Fig 3: Locating Actuator Drive Locking Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Correctly position actuator drive (1) and engage in cover housing (3).

NOTE: Retaining lugs (2) must not be damaged or missing.

Fig 4: Locating Actuator Drive Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install COVER HOUSING
