65 13 060 Removing and installing/replacing speaker (mid-range speaker, in instrument panel)

Special tools required:

REMOVAL:

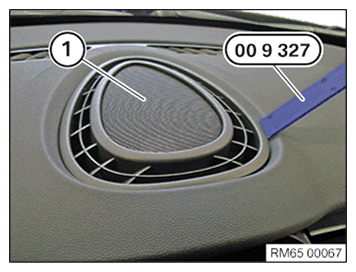

Unclip and remove cover (1) upwards with special tool 00 9 327 .

Fig 1: Removing Mid-Range Speaker Cover Upwards With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove mid-range speaker (2) upwards from dashboard (3).

Disconnect plug connections underneath.

Remove mid-range speaker (2).

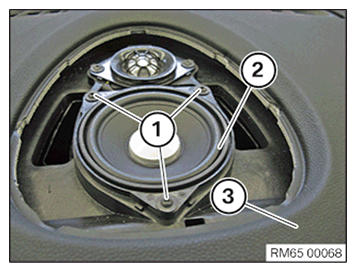

Fig 2: Locating Mid-Range Speaker Screws

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Join plug connections.

Insert mid-range speaker (2) into instrument panel (3).

Tighten down screws (1).

Fig 3: Mid-Range Speaker Screws Location

Courtesy of BMW OF NORTH AMERICA, INC.

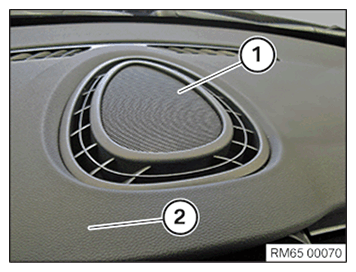

Engage cover (1) correctly in instrument panel (2).

Fig 4: Engaging Cover In Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.
