65 75 055 Removing and installation/replacing emergency power siren with tilt sensor

Necessary preliminary tasks:

Removal:

Unscrew nuts (1).

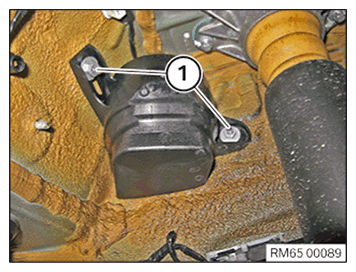

Fig 1: Locating Emergency Power Siren Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove emergency power siren with tilt sensor (2).

Fig 2: Removing Emergency Power Siren With Tilt Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Slacken nut (1).

Remove emergency power siren with tilt sensor (2) from holder (3).

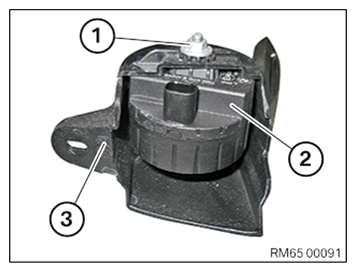

Fig 3: Emergency Power Siren Parts Location

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Place the emergency power siren with tilt sensor (2) correctly on holder (3).

Tighten nut (1).

Fig 4: Emergency Power Siren With Tilt Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join and lock the plug connection (1) on the emergency power siren including the tilt sensor (2).

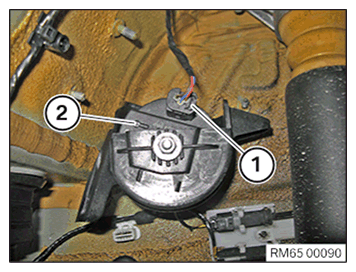

Fig 5: Locating Emergency Power Siren Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down nuts (1).

Fig 6: Locating Emergency Power Siren Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
