65 20 090 Removing and installing or replacing aerial amplifier

Necessary preliminary tasks:

REMOVAL:

Unlock plug connections (1) and disconnect.

Release screw (2).

Remove aerial amplifier (3).

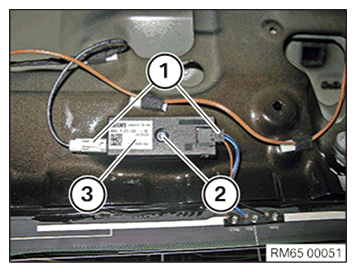

Fig 1: Locating Aerial Amplifier Screws And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Position aerial amplifier (3).

Tighten screw (2).

Join and lock plug connections (1).

Fig 2: Locating Aerial Amplifier Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
