65 20 022 Remove and install/replace the roof-mounted aerial (on version with slide/tilt sunroof)

Necessary preliminary work:

REMOVAL:

Unlock and disconnect plug connections at marked points.

Release screw (1).

Tightening torque 65 20 1AZ .

Remove holder of base of aerial (2) downwards.

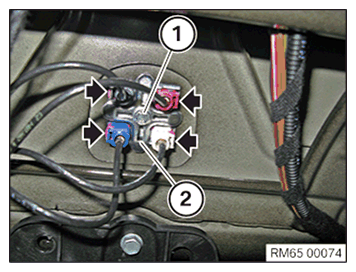

Fig 1: Removing Holder Of Base Of Aerial Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

Remove roof-mounted aerial (1) upwards.

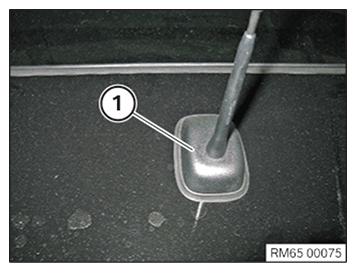

Fig 2: Roof-Mounted Aerial

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount the AERIAL ROD .

INSTALLATION:

Position roof-mounted aerial (1) correctly.

Fig 3: Roof-Mounted Aerial Position

Courtesy of BMW OF NORTH AMERICA, INC.

Position base of aerial holder (2) correctly.

Tighten screw (1).

Tightening torque 65 20 1AZ .

Join and lock plug connections at marked points.

NOTE: Replacement:

Connection for DAB-L on the roof-mounted aerial omitted (white connector).

Fig 4: Positioning Base Of Aerial Holder

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, tie back the remaining cable connection on the side of the vehicle so that rattling noise cannot occur.
