Replace electric valve for vacuum control of coolant pump (B48 and B46 engine) (Cooper S and John Cooper Works)

Preliminary work needed:

• Remove INTAKE PLENUM .

Removal:

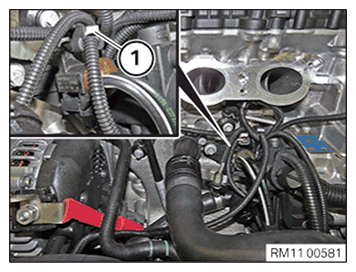

Unlock and disconnect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

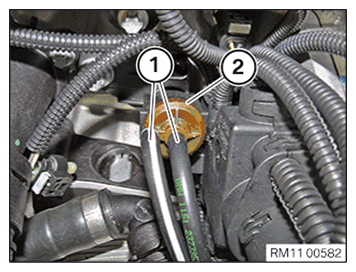

Detach vacuum lines (1) from electric valve (2).

Courtesy of BMW OF NORTH AMERICA, INC.

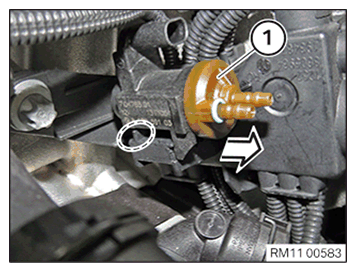

Unlock electric valve (1) in the marked area and detach towards front.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

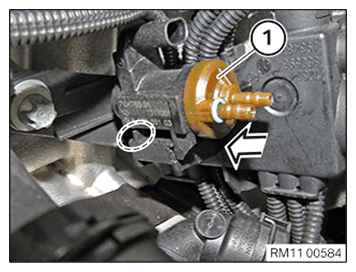

Place electric valve (1) in arrow direction on holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Place vacuum hoses (1) on electric valve (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install INTAKE PLENUM .
