Removing And Installing Cross Connection (Cooper, Cooper S, John Cooper Works): Overview

Read contents of BODY, GENERAL .

For stripping and rebuilding operations, see the surrounding texts on the KSD (FRU number 41 33 210).

Necessary preliminary work

• Remove INTAKE SILENCER HOUSING .

Removal

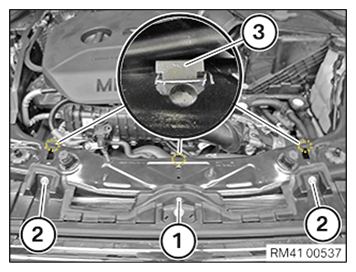

Release screws (1) and (2).

Release clamps (3) for the Bowden cable for the hood latch.

Courtesy of BMW OF NORTH AMERICA, INC.

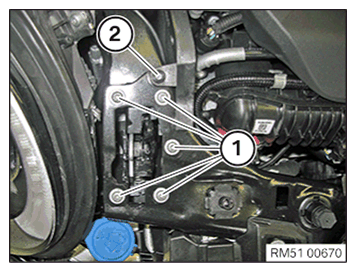

Unscrew the screws (1).

Lift out expanding rivet (2).

Courtesy of BMW OF NORTH AMERICA, INC.

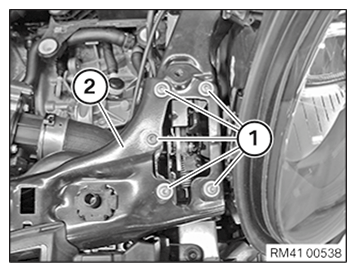

Undo screws (1) and remove cross connection (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install cross connection. Fit all screws.

Note PROCEDURE FOR FRONT PANEL INSTALLATION .

Tighten screw (1).

Tightening torque 41 33 1AZ .

Tighten down screws (2).

Tightening torque 51 11 1AZ .

Secure the clamps (3) for the Bowden cable of the hood lock on the cross connection.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 41 33 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 41 33 2AZ .

Attach expanding rivet (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installed on the right side only on vehicles with production date as of: 12/2016

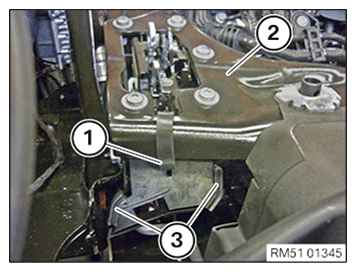

Secure the spray guard (1) on the cross connection (2) as illustrated.

Secure the spray guard (1) on the lock bridge with the retaining tabs (3).

Properly mount spray guard (1) to prevent corrosion.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install INTAKE SILENCER HOUSING .
