Removing and installing/replacing rear seat (Cooper Convertible)

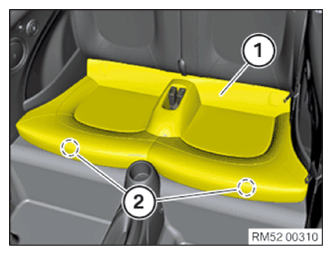

Removal:

Pull rear seat (1) in area (2) firmly upwards.

Remove rear seat (1).

G13798179Courtesy of BMW OF NORTH AMERICA, INC.

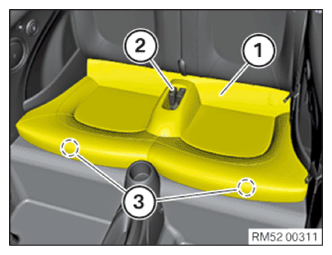

Installation:

Set the back seat (1) and insert belt buckles (2).

Press rear seat (1) downwards in the area (3).

Rear seat (1) must be felt and heard to engage.

G13798180Courtesy of BMW OF NORTH AMERICA, INC.
