Replacing the holder for the wishbone on the left or right (Cooper Convertible)

Special tools required:

• 11 0 420
• 31 2100
• 23 0 272
• 31 2103
• 31 2102

Courtesy of BMW OF NORTH AMERICA, INC.

Preliminary work needed:

• Remove WISHBONE .

Removal:

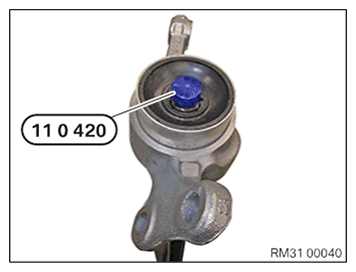

Insert special tool 11 0 420 into bore in wishbone pin.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparing special tool 31 2 100:

• Replace original spindle by spindle 23 0 272.
• Mount special tool 31 2 103 on special tool 31 2 102.

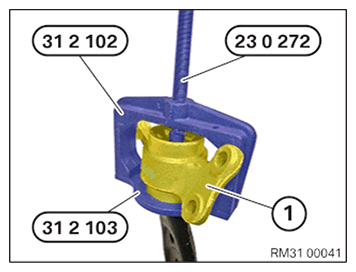

Position special tool 31 2 100 and detach holder with rubber mount (1) with spindle 23 0 272.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat the inside of the rubber mount using 4 UH 1460 lubricating oil (part number: 0 306 232).

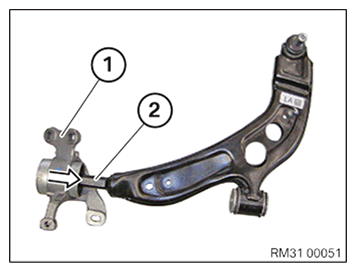

Align holder with rubber mount (1) to wishbone (see graphic).

Slide holder with rubber mount (1) onto wishbone pin (2) up to stop.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install WISHBONE .
