Replace The Right Headlight Stand (Cooper, Cooper S, John Cooper Works)

Preliminary work needed:

• Remove TRIM FROM RIGHT WHEEL ARCH .
• Remove RIGHT HEADLIGHT .

REMOVAL:

Courtesy of BMW OF NORTH AMERICA, INC.

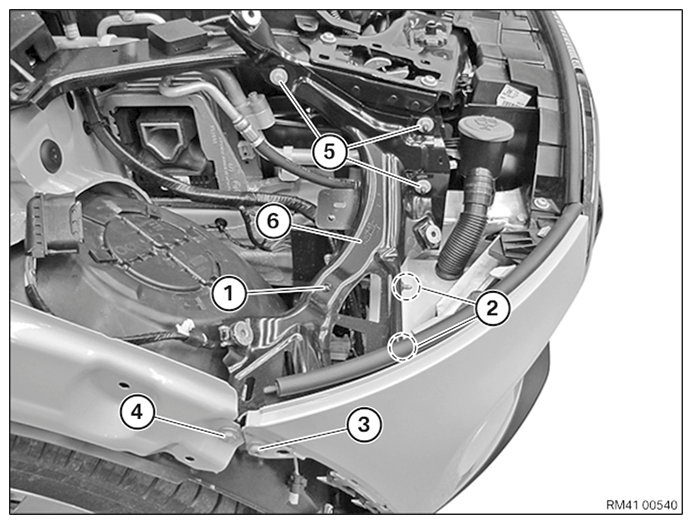

Release wiring harness at attachment point (1).

Release screws (2) to (5) and remove headlight stand (6).

INSTALLATION:

Courtesy of BMW OF NORTH AMERICA, INC.

Install headlight stand (6) and tighten screws (2) to (5).

Screws (5): Tightening torque 41 33 3AZ .

Screw (4): Tightening torque 41 35 1AZ .

Screw (3): Tightening torque 51 11 1AZ .

Fasten wiring harness in area (1).

Required reworking:

• Install TRIM ON RIGHT WHEEL ARCH .
• Install RIGHT HEADLIGHT .
