Removing and installing/replacing front left protective plate (Cooper Convertible)

Preliminary work needed:

• Remove front BRAKE DISC .

Removal:

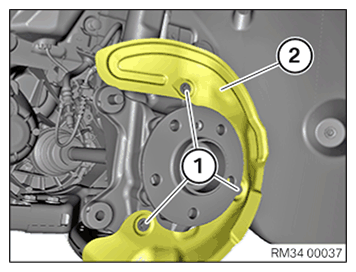

Release screws (1) and remove brake guard plate (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mounting the brake guard plate (2).

Insert screws (1) and tighten.

Tightening torque 34 11 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the front BRAKE DISC .
