REP-TAT-P-5434-02 Install convertible top

Prerequisite

NOTE: RISK OF DAMAGE
Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

Courtesy of BMW OF NORTH AMERICA, INC.

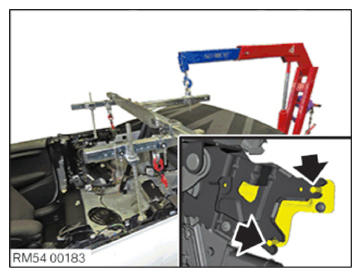

Insert the convertible top into the vehicle.
The main bearings must be fed into the threaded bolts (arrows). Make sure that the convertible top drives are not damaged.
Thread in drive cable.
Insert the convertible top completely into the vehicle.

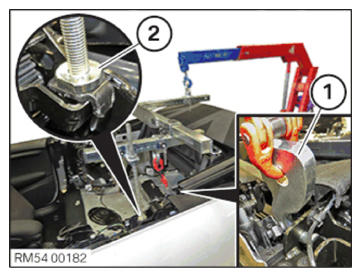

Detach the hooks (1) from the main bearings on the left and right.
Remove lifting gear.

Courtesy of BMW OF NORTH AMERICA, INC.

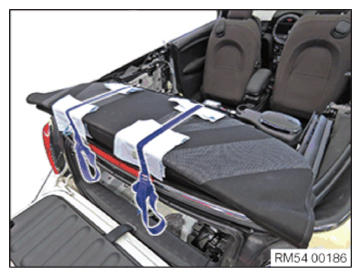

Remove luggage straps.

Courtesy of BMW OF NORTH AMERICA, INC.

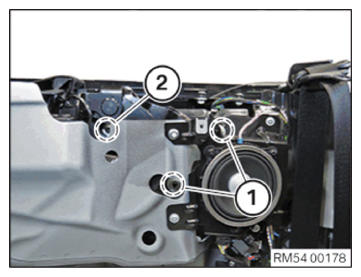

Replace the screw (2) and the nuts (1).
Parts: Bolt, nuts

Tighten the screw (2) and the nuts (1) on the left and right.

TIGHTENING TORQUE SPECIFICATION

Convertible top to body

Replace screws and nuts.

Joining torque

20.5 Nm

Angle of rotation 90°

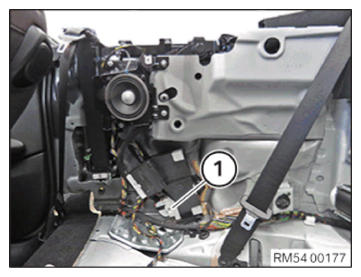

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

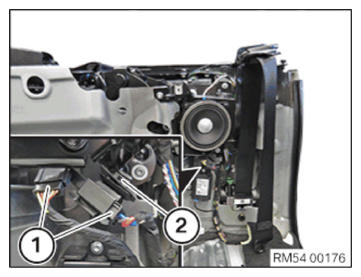

Clip in the connector (2).
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

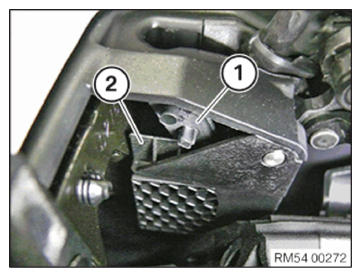

Check the hall effect sensor (1) for correct fit.
The Hall effect sensor (1) must be located behind the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

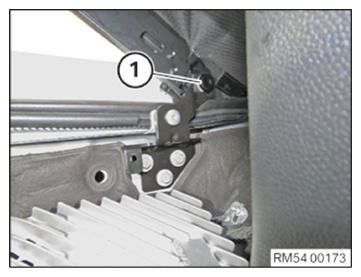

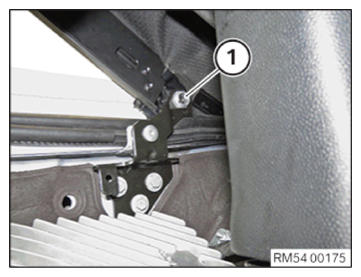

Replace screw (1), left and right.
Parts: Screw

Tighten the screw (1) the left and right.

TIGHTENING TORQUE SPECIFICATION

Convertible top brace to convertible top brace support

Replace screw.

Joining torque

9.5 Nm

Angle of rotation 90°

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

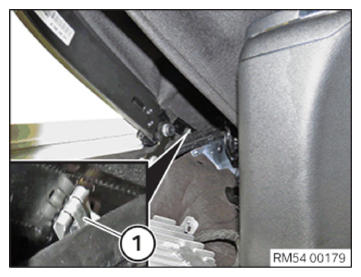

Insert the protective cap (1) on the left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

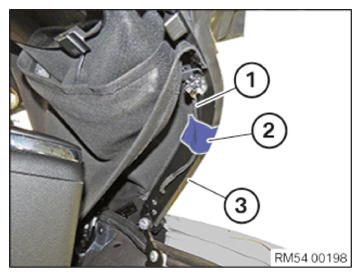

Remove the adhesive tape (2) from the wiring harness (1) and the convertible top brace (3).

Courtesy of BMW OF NORTH AMERICA, INC.

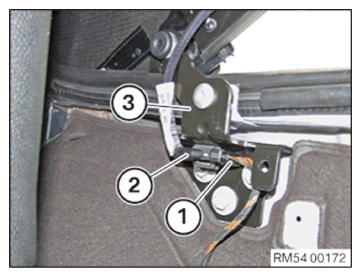

Clip the connector (2) into the convertible top brace mount (3).
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Place the convertible top fabric on the bolts on the left and right.
Insert the left and right retaining clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

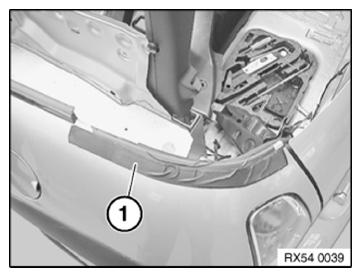

Remove adhesive tape (1).

Courtesy of BMW OF NORTH AMERICA, INC.
