Removing and installing/exchanging guide for left or right front seat head restraint (Except John Cooper Works)

Special tools required:

• 52 0 070

Preliminary work needed:

• Remove HEAD RESTRAINT .

Removal:

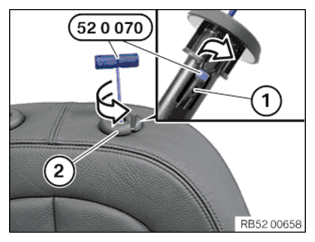

Insert special tool 52 0 070 into guide hole of sleeve (2) up to upper area of retaining lug.

Feed in unlocking guide of special tool behind the detent (1).

Turn tool to release sleeve (2) and pull out by lifting upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert guide (1) from above and engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install HEAD RESTRAINT .
