Removing and installing/replacing front compartment lid air duct (Cooper S Convertible)
Removal:
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Raise the hood.

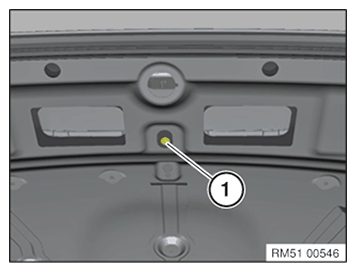

Remove screw (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

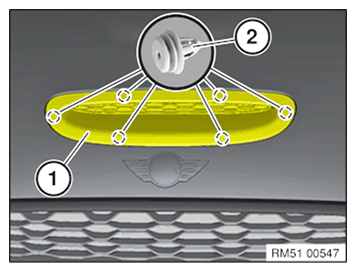

Release air duct (1) upwards from clips (2).
Installation:
Courtesy of BMW OF NORTH AMERICA, INC.
|
NOTE:
Replace faulty clips (2).
Position air duct (1) with clips (2) and clip in.
Courtesy of BMW OF NORTH AMERICA, INC.
|
Raise the hood.
Tighten screw (1).
