Removing and installing/replacing guide for bumper, rear left or right (Cooper Convertible)

Preliminary work needed:

• Remove rear BUMPER SUPPORT .

Removal:

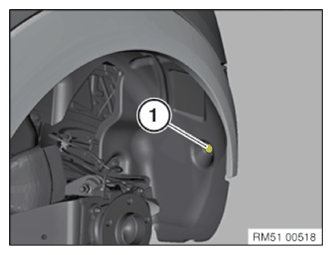

Remove screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

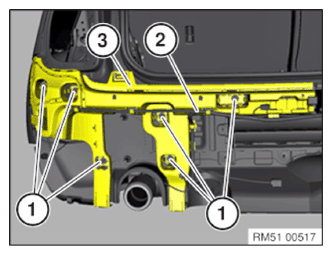

Unscrew nuts (1).

Detach cable (2) and remove guide (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Place guide (3) and fix with nuts (1).

Tightening torque 51 12 2AZ .

Attach cable (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install rear BUMPER SUPPORT .
