REP-TAT-P-5218-01 Remove front seat
Further information is available.
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: NOTES airbag safety regulations!
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: NOTES airbag safety regulations!
- Adjust the front seat fully to the rear.
- Loosen screws (1).
- Adjust the front seat fully to the front.
- Loosen screws (1).

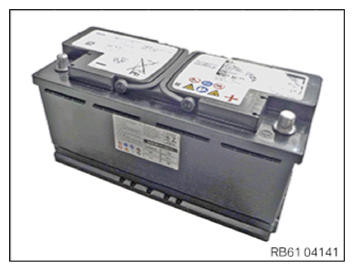

Disconnecting all battery ground leads
Further information is available.
- See: BATTERY GROUND LEAD.
NOTE:
RISK OF DAMAGE
Scratches.
Tools and sharp-edged components can cause scratches.
Scratches.
Tools and sharp-edged components can cause scratches.
- Protect working area.
- Handle tools and components carefully.
- Cover the door sill using protective covers.
- Place the front seat fully to the rear and disconnect the plug connector (1).
NOTE:
RISK OF DAMAGE
Heavy component.
Heavy components can lead to injury or damage.
Heavy component.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.
- Remove the front seat with the assistance of an support person.

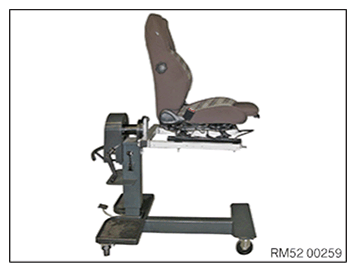

Mounting the front seat on the universal seat mount
- Fit special tool 2 154 711 onto special tool 0 495 187 (00 2 300).
- Mount the front seat onto the special tool 2 154 711.
To ensure correct repair, use of the special tools 0 495 187 (00 2 300) and 2 154 711 is recommended.
